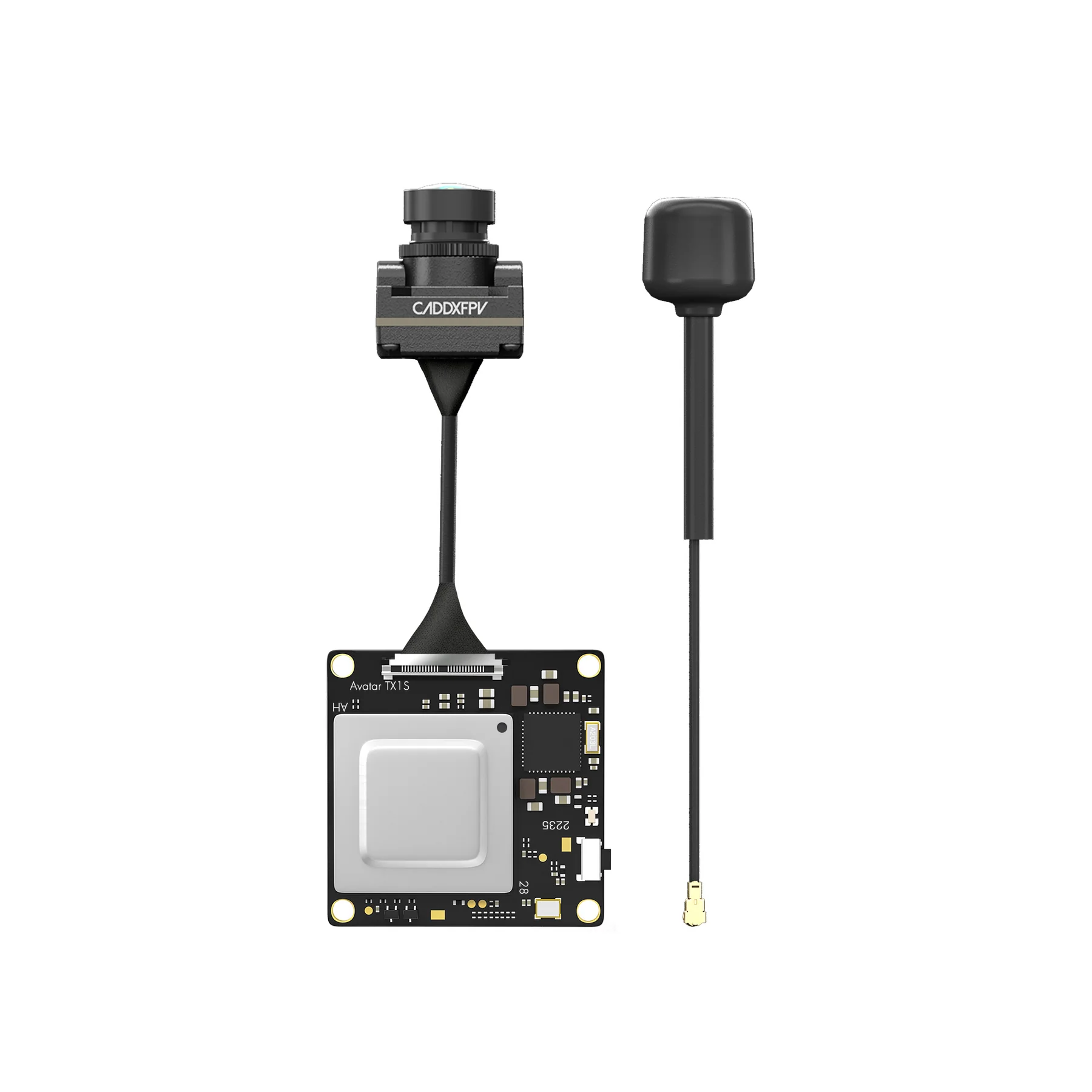

Walksnail Avatar HD Mini 1s Kit
Ideal for both hobbyists and professionals, the Walksnail Avatar HD Mini 1s Kit Camera is your go-to choice for top-tier imaging in any setting!
- Model: Avatar nano
- Image Sensor: 1/2.7”1nch
- Resolution: 1080P/60fps,720P/120fps,720P/60fps
- Ratio: 16/9 4/3
- Lens: 2.1mm
- FOV: 170°
- Aperture: F2.0
- Shutter Rolling: shutter
- Min.Illumination: 0.001Lux
- Weight: 3.5g
- Dimensions:14*14*17mm
- Coaxial Cable: 55mm（default）/90mm
- VTX Specification
- Model: Avatar mini 1s module
- Communication Frequency: 5.725-5.850GHz
- Transmitter Power (EIRP): FCC:<25.5dBm; CE:<14dBm;
- SRRC:<20dBm; MIC:<25dBm
- I/O Interface: JST1.0*6(Power in)JST0.8*4(USB)
- Mounting Holes: 25.5*25.5mm
- Dimensions: 30*30*6.5mm
- Storage: 8G(v2) / 32G(v3)
- Recording: 1080p/720p
- Weight: 6.8g
- Operating Temperature: -20-40℃
- Channels: 8
- Wide Power Input: 3.1V-5V(V2) / 3.1V-13V(V3)
- Supported FC System: Betaflight; Inav; Fettec; Kiss; ArduPliot
- OSD: Canvas mode
- Bitrate: 25mbps 50mbps
- Latency: Average latency 22ms
- Antenna: IPEX
- Description
- Video
- Data sheet
Features:
| 1080P/60fps | 3.1V-13V |
| 22ms low latency | Power 500mW |
| Built-in 32G storage | 6.8g light weight |
Bullet Points:
1080P/60FPS,720P/120FPS
The Avatar HD system uses H.265 code,an industry-leading technology,
to provide 1080p FPV image quality with ultra-low latency.
6.8g light weight board
The Avatar mini 1S VTX weights only 6.8g and fits perfectly with the 75X quad.
22ms Low Latency
Supports both high frame rate and standard frame rate,
in high frame rate,it has an average latency of 22ms.
32G Built-in Storage
The Avatar mini 1s vtx comes with 32g built-in storage,it can record 1080p
with 60fps or 720p with 100fps/60fps HD flight videos without interference.
Specification | |
| Camera | |
| Model | Avatar nano |
| Image Sensor | 1/2.7”1nch |
| Resolution | 1080P/60fps,720P/120fps,720P/60fps |
| Ratio | 16/9 4/3 |
| Lens | 2.1mm |
| FOV | 170° |
| Aperture | F2.0 |
| Shutter Rolling | shutter |
| Min.Illumination | 0.001Lux |
| Weight | 3.5g |
| Dimensions | 14*14*17mm |
| Coaxial Cable | 55mm（default）/90mm |
| VTX | |
| Model | Avatar mini 1s module |
| Communication Frequency | 5.725-5.850GHz |
| Transmitter Power (EIRP) | FCC:<25.5dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm |
| I/O Interface | JST1.0*6(Power in)JST0.8*4(USB) |
| Mounting Holes | 25.5*25.5mm |
| Dimensions | 30*30*6.5mm |
| Storage | 8G(v2) / 32G(v3) |
| Recording | 1080p/720p |
| Weight | 6.8g |
| Operating Temperature | -20-40℃ |
| Channels | 8 |
| Wide Power Input | 3.1V-5V(V2) / 3.1V-13V(V3) |
| Supported FC System | Betaflight; Inav; Fettec; Kiss; ArduPliot |
| OSD | Canvas mode |
| Bitrate | 25mbps 50mbps |
| Latency | Average latency 22ms |
| Antenna | IPEX |
| VTX Antenna | |
| Model | Avatar V2 antenna |
| Polarization | LHCP |
| Bandwidth | 5600MHz-6000MHz |
| Average Gain | 1.9dBi |
| VSWR | ＜1.5 |
| Line Length | 90mm |
| Input Impedance | 50Ω |
| Interface | IPEX-1 |
| Dimension | D15mm*L105mm |
| Weight | 2g |
| Packing List | |
| Avatar Mini 1S KIT | X1 |
| 4 Pin USB Cable | X1 |
| 6 Pin Power Cable | X1 |
| M2x3/4mm Screws | X2 |
| M2x16mm Screws | X4 |
| M2 Screw nut | X4 |
| 2.1x3.4x1mm Gasket | X5 |
-
-
