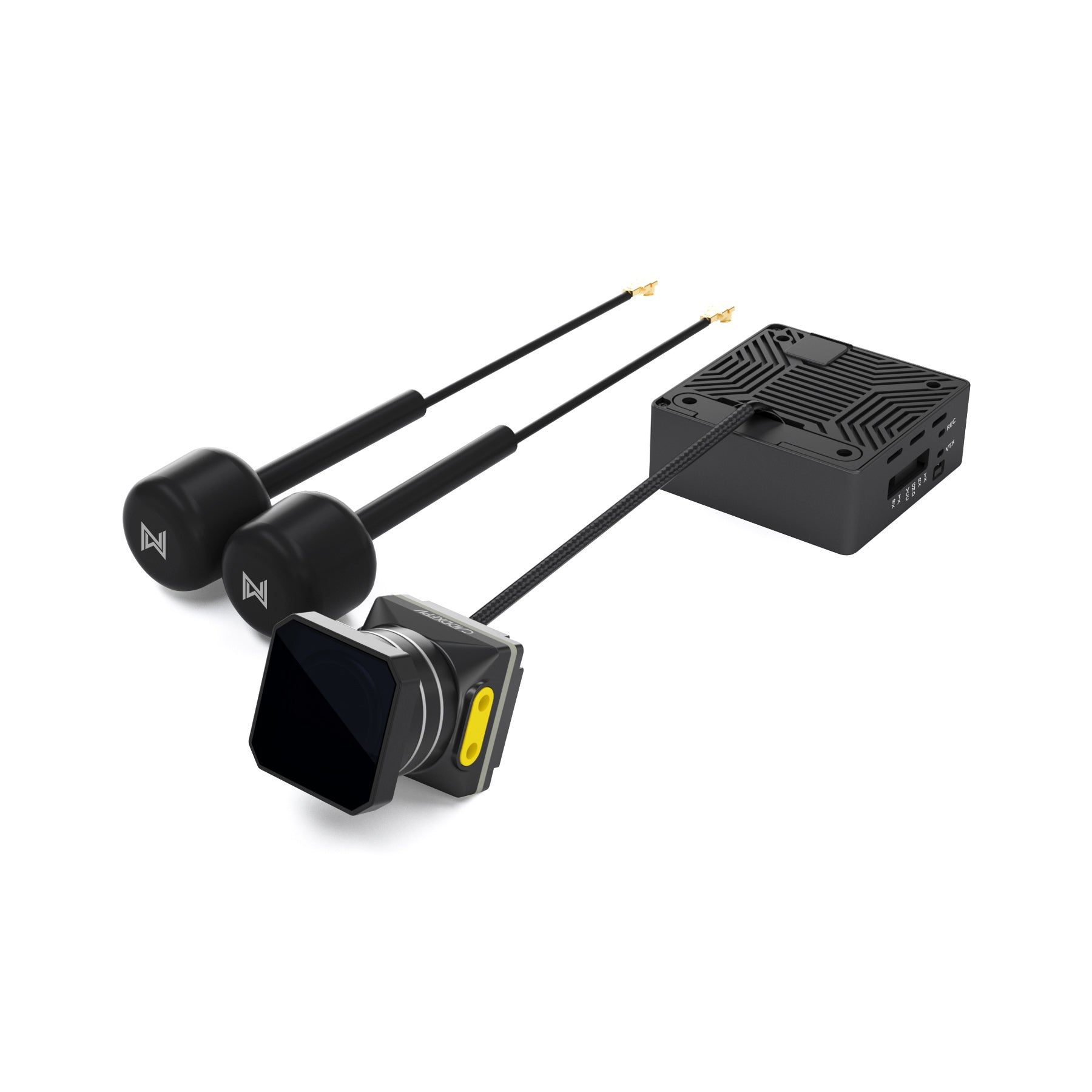

Walksnail Moonlight Kit
Elevate your videography with the Moonlight camera, featuring stunning 4K resolution for crystal-clear imagery. With an impressive transmission rate of up to 150Mbps, it ensures smooth and reliable video streaming.
- Model: Moonlight Kit
- Firmware name: AvatarMoonlight_Sky_X.X.X
- Communication Frequency: 5.725-5.850GHz
- Transmitter Power (EIRP): FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm
- 1/O Interface: JST1.0*4(Power in)JST0.8*6(USB),Micro SD card Slot;IPEX-1
- Sensor: Starlight sensor
- FOV Max: 160°
- Aperture: F2.1
- Shutter: Rolling shutter
- ISO: 100-25600
- Recording resolution: 4K@30/60fps,2.7K@30/60fps,1080p@100/60fps,720p@60fps
- Max Mbps: 50Mbps
- Video format: MP4 (H.264)
- 3D DNR: Support
- Gyroflow: Support
- Descripción
- Vídeo
- Ficha de datos
Features:
●4K/60FPS | ●Startlight Camera |
●Built-in EIS | ●Support Gyroflow |
●SD card | ●FOV 160° |
●Dual Antennas | ●7.4V-25.2V |

Bullet Points:
Supports 4K/60fps, ensuring that FPV embraces true 4K. Shooting stable and HD videos without unnecessary latency, bring pilots a smoother FPV experience.

Feature starlight sensor, to improve image quality and performance in low-light scene shooting, ensuring night vision shooting and eliminating frequent camera switching.

Built-in EIS and supports Gyroflow technology, taking you a smooth and stable video quality, to facilitate and enjoy freestyle fly.

Comes with silicone pads for mounting the camera, ensuring stability and minimizing camera shake for perfect captures.

Supports manual shutter and manual ISO settings, take perfect photos regardless of any lighting limits.

The moonlight camera has a 160° FOV, providing you with a more natural and real picture for the ultimate flying experience.

Come with ND8 filters to meet the needs of more different shooting scenes, to bring different effects to the shooting.

Q: When will it be shipped?
A: In order to give pilots a better experience. Currently, each order will be shipped within 5 working days.
Q: Can moonlight vtx use other WS cameras?
A: No, but other vtx can use moonlight camera
Q: Where to download the manual?
A: You can check it on the Download Center page.
Q: How to install the Moonlight Camera (With video board) on other VTX?
A: View Moonlight Camera Installation Guide, compatible with GT VTX, VTX V2 Module, Mini VTX V3 Module, Mini 1s And Mini 1s Lite Module.
Specification | |
Model | Moonlight Kit |
Firmware name | AvatarMoonlight_Sky_X.X.X |
Communication Frequency | 5.725-5.850GHz |
Transmitter Power (EIRP) | FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm |
1/O Interface | JST1.0*4(Power in)JST0.8*6(USB),Micro SD card Slot;IPEX-1 |
Sensor | Starlight sensor |
FOV | Max 160° |
Aperture | F2.1 |
Shutter | Rolling shutter |
ISO | 100-25600 |
Recording resolution | 4K@30/60fps,2.7K@30/60fps,1080p@100/60fps,720p@60fps |
Max Mbps | 150Mbps |
Video format | MP4 (H.264) |
3D DNR | Support |
Gyroflow | Support |
Built-in EIS | Support |
Wide Power Input | 7.4V-25.2V |
Power consumption | 12V@1.4A, 8V@2.2A |
Memory card type | U3 MicroSD, Max 256G |
Camera size | 19.6mm*19mm*24mm |
VTX size | 15.3mm*34.5mm*34.5mm |
VTX Installation hole distance | 20*20mm/25*25mm (M2) |
Weight | Gross weight: 38.5g(Antenna not included) |
OSD | Canvas mode |
Latency | Average delay 22ms |
Antenna | 2 (IPEX) |
Specification | |
Model | Moonlight Camera |
Firmware name | AvatarMoonlight_Sky_X.X.X |
Sensor | 1/1.8”Inch |
FOV | 160° |
Aperture | F2.1 |
ISO | 100-25600 |
Recording resolution | 4K@30/60fps; 2.7K@30/60fps; 1080p@100/60fps;720p@60fps |
Max Mbps | 150Mbps |
Video format | MP4 (H.264) |
Shutter | Rolling shutter |
3D DNR | Support |
Gyro flow | Support |
Built-in ElS | Support |
Wide Power input | 7.4V-25.2V |
Memory card type | Micro SD, Max 256G |
Power consumption | 12V@0.8+0.1A |
Dimensions | Camera:19.5mm*19mm*24mm REC Board: 34.5mm* 34.5mm*8.3mm |
Weight | Camera(without wire): 8.9g; Recording board: 10g |
VTX Antenna | |
model | avatar V2 antenna |
Polarization | LHCP |
Frequency range | 5600MHz-6000MHz |
Average Gain | 1.9dBi |
VSWR | <1.5 |
Input Impedance | 50Ω |
Interface | IPEX-1 |
Dimension | R15 X 45mm (without cable) |
Weight | 2g |
Moonlight Kit Packing List: | |
Walksnail Moonlight kit | X1 |
M2*4mm round head screws | X8 |
M2*5mm round head screws | X4 |
M2*6mm round head screws | X4 |
Double head 0.8mm*6PIN (4 wires) | X1 |
4PIN silicone cable | X1 |
Quick Start Guide | X1 |
Moonlight Camera Packing List: | |
Moonlight Camera | X1 |
M2*4mm | X4 |
M2*5mm screw | X4 |
M2*6mm screw | X4 |
M2*18mm screw | X4 |
M2 nut | X8 |
M2*5*0.5mm washer | X4 |
6pin 0.8mm to 6pin 0.8mm | X1 |
6pin 0.8mm to 4pin 0.8mm | X1 |
6pin 0.8mm to 4pin 1.0mm | X1 |
